Description

Tested & CPRI approved Electrical Panels from CDI are most reliable control Gears to run your fountains for years & years.

TECHNICAL CHARACTERISTICS: Model: CDI-EP-DOL Direct ON Line type Electrical panel for pump rating 3HP/5HP/7.5HP Bill of Material for 1Pump Body Size: 450(W)x450(H)x300(D). Main Incomer 60A 3 Pole MCCB 1.00 no. 3 Pole MCB 32 Amps 1.00 no. SP MCB 6 Amps 1.00 no. DP MCB 8 Amp 1.00 no. Single Phase Preventer 1.00 no. Volt selector switch 1.00 no. Voltmeter 0-500 v 1.00 no. Ammeter 0-30 amps 1.00 no. Overload relay 9- 15 Amp. 1.00 no. TPN Power Contractors MNX-25.00 1.00 no. Auxilary Block 1NO+1NC – 1 no. Indicators – 2.00 sets Start/Stop Push Button assembly 2.00 sets Bill of Material for 2Pumps Body Size: 600(W)x600(H)x300(D). Main Incomer 60A 3 Pole MCCB 1.00 no. 3 Pole MCB 32 Amps 2.00 no. SP MCB 6 Amps 2.00 no. DP MCB 8 Amp 1.00 no. Single Phase Preventer 2.00 no. Volt selector switch 1.00 no. Voltmeter 0-500 v 1.00 no. Ammeter 0-30 amps 2.00 no. Overload relay 9 – 15 Amp. 2.00 no. TPN Power Contractors MNX-25.00 2.00 no. Auxilary Block 1NO+1NC – 2 nos. Indicators – 3.00 sets Start/Stop Push Button assembly 3.00 sets Bill of Material for 3Pumps Body Size: 750(W)x750(H)x300(D). Main Incomer 100A 3 Pole MCCB 1.00 no. 3 Pole MCB 32 Amps 3.00 no. SP MCB 6 Amps 3.00 no. DP MCB 8 Amp 2.00 no. Single Phase Preventer 3.00 no. Volt selector switch 1.00 no. Voltmeter 0-500 v 1.00 no. Ammeter 0-30 amps 3.00 no. Overload relay 9 – 15 Amp. 3.00 no. TPN Power Contractors MNX-25.00 3.00 no. Auxilary Block 1NO+1NC – 3 nos. Indicators – 4.00 sets Start/Stop Push Button assembly 4.00 sets

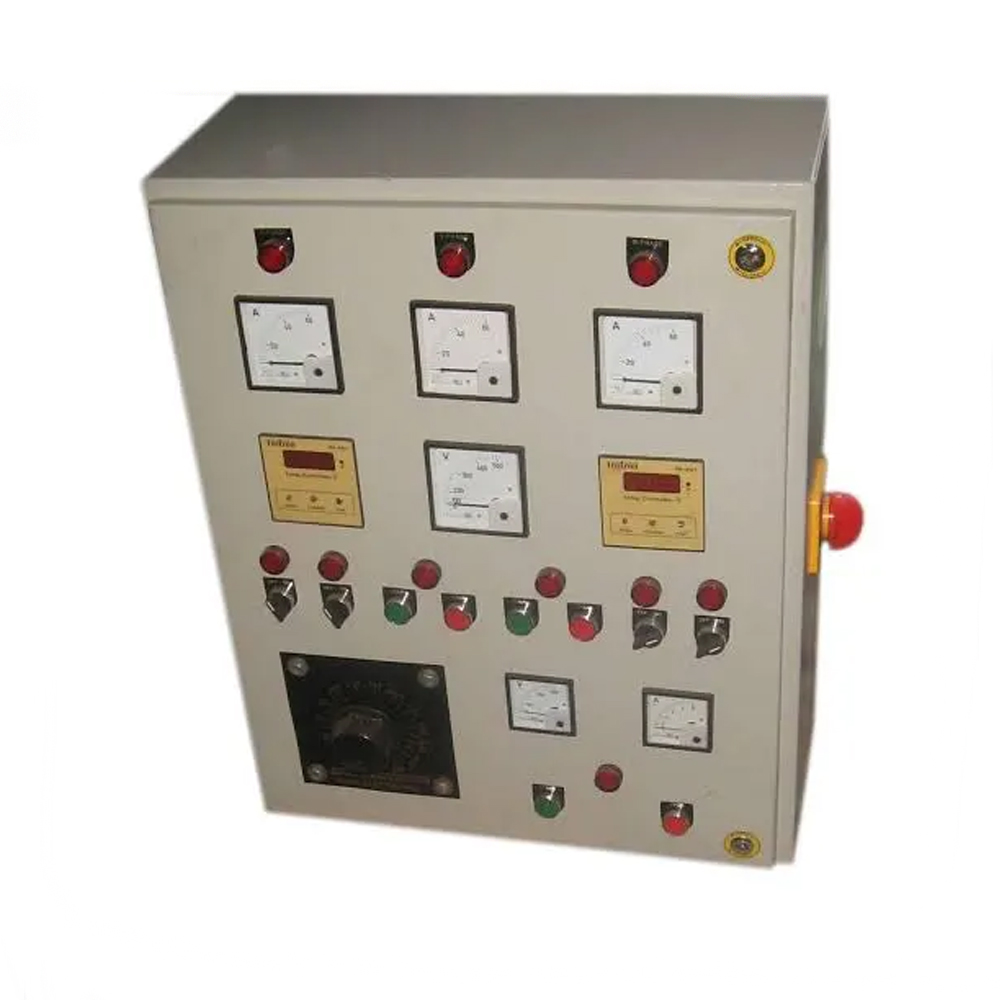

Electrical Control Panel DOL TYPE
